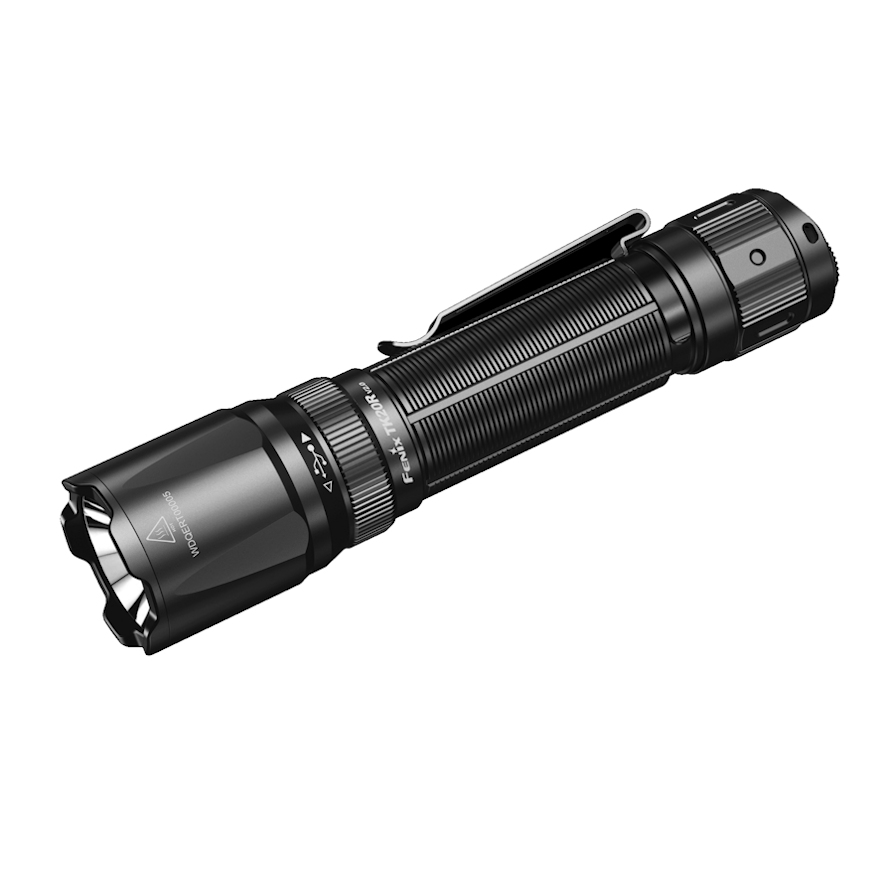

Fenix TK20R V2 is a powerful update to the popular TK20R and is the longest throwing Fenix single cell LED Tactical torch.
This new model upgrades the outgoing Fenix TK20R with an increase in output from 1,000 to 3000 lumens, an increase in beam range from 310 to an impressive 475 meters, tailcap dual switch system, 5000 mAh Fenix 21700 battery and Fenix advanced Digital Pulse Transmission signal system for a combination of ultimate power output and switch reliability.
The torch features the latest USB-C charging socket and a recharge time of just 3.5 hours, using the supplied USB-C cable in conjunction with your existing USB mobile phone charger or similar. The charging socket and battery / charge level LED are covered by a threaded sleeve for complete waterproofing. The charge socket itself is also waterproof for an additional layer of protection.
The compact form factor of TK20R V2 is ideal for both hand held and weapon mounted use. Dual springs protect the battery from recoil / impact and ensure an excellent electrical contact under all conditions.
Extremely rugged and featuring a strike face bezel, TK20R V2 is ready for ultra heavy duty use. The dual tail switch system incorporates momentary-on capability and access five brightness levels plus Instant Strobe. This premium tactical light is built for law enforcement, search and rescue, military, hunting use and more.
• Luminus SFT70 LED
• Fenix ARB-L21-5000 V2 high power 21700 battery
• Forward clicky tail switch with momentary and constant-on activation
• Tail mode switch for brightness control and Instant Strobe function
• Mode switch cycles through Eco-Low-Mid-High-Turbo outputs
• Digitally regulated output maintains constant brightness
• Last mode memory - remembers your brightness setting (except Strobe)
• Strobe can be activated with the light switched on or off. (press mode switch 0.5 sec)
• Charge level / battery level LED under screw cap
• Overheat protection at 60 degrees C (max power can be set once the light cools)
Compatible with Fenix accessories: Rail Mount (ALG-00), Remote Switch (AER-05), Traffic Wand (AOT-M), Filter Adaptor (A0F-M (AD302)), Diffuser Tip (A0D-M)
Loaded with premium features and built to last, this outstanding Tactical torch is designed for serious use in the harshest environments.
For full product details please refer to the user manual in the images area.
Specification
Model
TK20R V2.0
Battery Type
21700
Battery Quantity
1
Additional Battery Type
Accepts full range of Fenix ARB-L21 series. Do not use 18650, 16340 or CR123 batteries in this product
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Dual tail cap switches. (mode switch and on - off - momentary switch)
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
152mm (Length) x 34mm (Head Diameter) x 25.4mm (Body Diameter)
204 grams (including battery)
Further Info
N/A
Operation
Fenix TK20R V2 operation:
Switches:
The round tail switch is the tactical switch for momentary / constant activation. The oval tail switch is the functional switch for output selection and instant strobe.
On/off:
Tap (half press) the tactical switch to silently and momentarily turn on the light, release and the light will go out. Fully press (click) the tactical switch to constantly turn on the light, press again (click) and the light will go out.
Output Selection:
With the_light switched on, single-click the functional switch to cycle through Eco-Low-Med-High-Turbo.
Strobe:
With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click the functional switch once again to return to the general mode. With the light switched off, press the functional switch to enter strobe, release and the light will go out.
Intelligent Memory Circuit:
The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
Package & Contents
Retail packaged Fenix TK20R V2.0 rechargeable LED torch Fenix ARB-L21-5000 battery USB-C charging lead Holster Lanyard 2 x Spare O-ring Warranty card User manual
