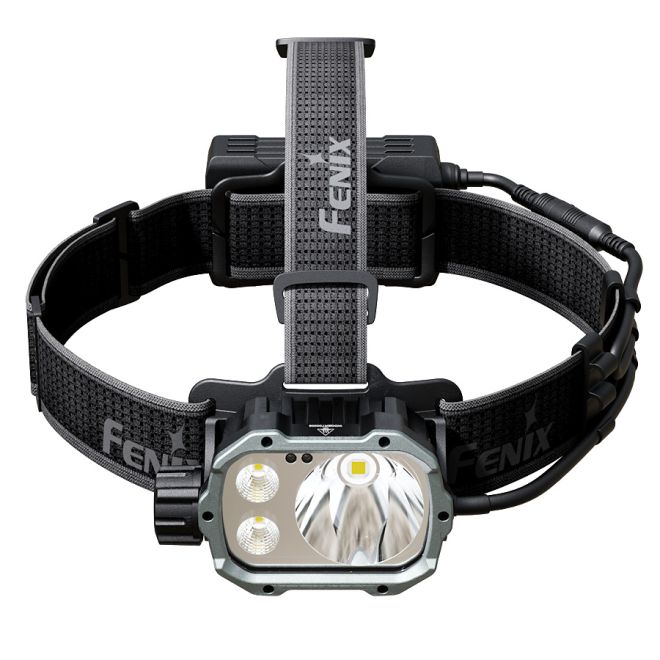

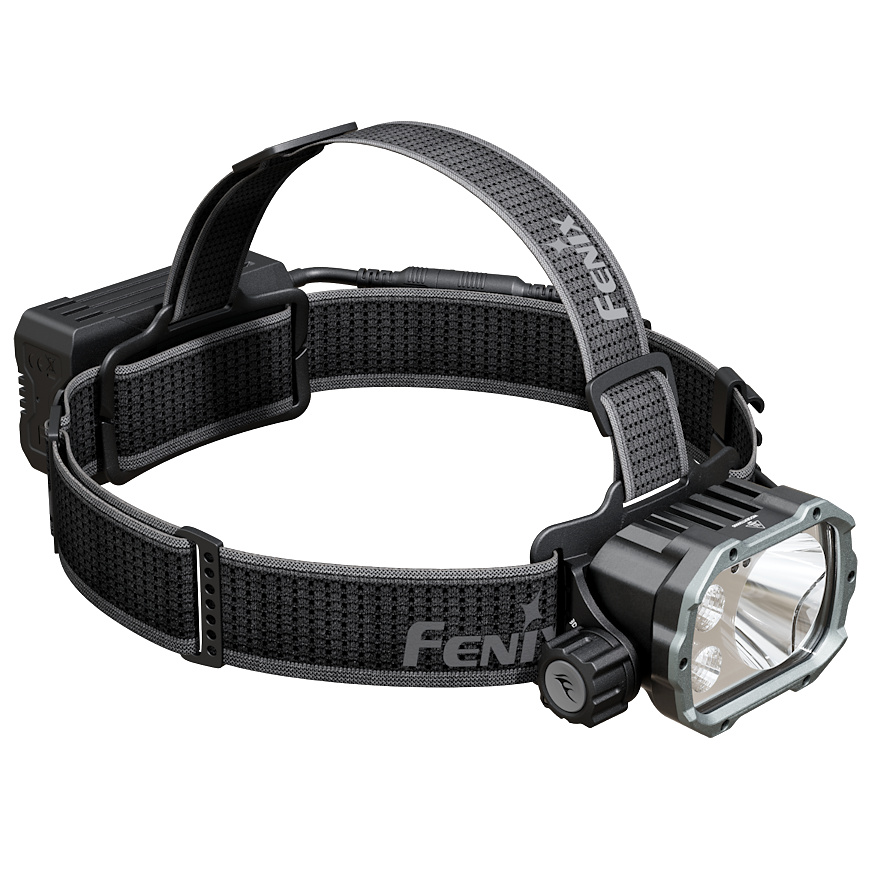

Designed for outdoor and general/every day work use, Fenix HP35R is a versatile, ultra powerful headlamp with a long distance 3000 lumen, 440 metre main beam, and impressive 1200 lumen floodlight. The lamp is powered by a 10,000 mAh, rear mounted rechargeable battery and controlled by a rotary mode switch with central brightness adjusting push button.
The warm white main beam features 4 brightness levels of 50, 350, 800 and 3000 lumens. 2 x 600 lumen neutral - white flood lights deliver 5, 50, 400 and 1200 lumens. Switch them all on to turn night into day with 4000 lumens of light!
With large battery capacity, efficient, aluminium heat sink head and industrial quality components, HP35R can maintain extreme output much longer than a conventional headlamp, whilst effectively dissipating the heat generated and leading to longer service life.
The heavy duty battery pack is easily removable from the headband and can be used in a bag or pocket in conjunction with the included extension cable. The battery case incorporates a 4 x LED meter displaying charging and battery level status, plus a USB-C in/out socket for use as a 10,000 mAh power bank. A red rear light with its own operating switch is incorporated for safety critical applications. This model is compatible with HP30R V2.0 battery boxes so that those seeking an upgrade can use their existing batteries.
Fenix HP35R features an intelligent brightness downshift function which reduces output to minimum when in close proximity to an object (60mm), for added safety and to protect the lamp unit. This feature can be switched off if required.
The light is fully weather proof and features an inner waterproof charging socket for added reliability.
• Neutral and warm-white LED's for mist/haze/rain penetration and accurate colour rendering
• Rotary mode switch and push button brightness switch
• High capacity 10,000 mAh battery pack for sustained performance
• Quick release battery pack. Use with included extension cable or easily swap for a spare.
• Battery pack extension cable included for pocket or bag use (great to keep the batteries warm in cold weather)
• 10,000 mAh power bank function
• Compatible with Fenix HP30R V2.0 battery boxes
• Black stealth headbands
• Inner waterproof USB-C charging/discharging port
• Operates reliably in strong magnetic fields
• 2m impact resistant
• Overheat step down at 55c
• Weatherproof/dustproof to IP66
For full product details please refer to the user manual in the images area.
Specification
Model
HP35R
Battery Type
Built in rechargeable battery
Battery Quantity
1
Additional Battery Type
Usable with Fenix HP30R V2 battery box. Not head mountable, must use extension cable.
LED Type
1 x Cree XHP-70 Neutral-White and 2 x Luminus SST-20 Warm White LED
Output/Runtime
Please refer to product description
Flashing Modes
N/A
Max Beam Distance
450m
Reflector
Smooth aluminium reflector
Lens Type
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Rotary mode switch with central push button brightness switch
Construction
Durable aircraft-grade aluminum and quality plastics
Finish
Premium Type III hard-anodized anti-abrasive finish (aluminium surfaces)
Tail Stand
No
Pocket Clip
No
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
Headlamp including mount: 94.1mm (Length) x 48.7mm (Width) x 57.4mm (Height)
Battery case including mount: 95.3mm (Length) x 40mm (Width) x 55.8mm (Height)
433 grams (including headband and battery)
Further Info
N/A
Operation
Fenix HP35R operation:
On/off:
On: With the lamp switched off, turn the rotary switch clockwise from off to any designated mode to turn on the lamp. Off: With the lamp switched on, turn the rotary switch counterclockwise to off to turn off the lamp.
Mode Switching:
Turn the rotary switch to cycle through OFF⇋Spotlight⇋Floodlight⇋Spot-and-floodlight.
Output Selection:  Spotlight mode:With the lamp switched on, single click Switch A to cycle through Low→Med→High→Turbo.
Floodlight mode: With the lamp switched on, single click Switch A to cycle through Low→Med→High→Turbo.
Spot-and-floodlight mode: With the lamp switched on, single click Switch A to cycle through Low→Med→High→Turbo.
Red Light Mode (Battery Case):
On/off: Press and hold Switch B for 0.5 seconds. Output selection: Single click Switch B to select between Red flashing (5 lumens) and Red constant-on(20 lumens).
Intelligent Memory Circuit: Â The headlamp automatically memorizes the last selected output of each mode. When turned on again the previously used output of selected mode will be recalled.
Intelligent Brightness Downshifting Function:
Turning on/off Intelligent Brightness Downshifting Function
On: With the lamp switched off, press and hold Switch A for 6 seconds, and the headlamp will flash twice at the Low output of Spot-and-floodlight mode, indicating that the function is enabled.
Off: With the lamp switched off, press and hold Switch A for 6 seconds, and the headlamp will flash eight times at the Low output of Spot-and-floodlight mode, indicating that the function is disabled.
Intelligent Brightness Downshifting:
When the lamp head is close to an illuminated object (about 2.36''/60 mm) for more than 1 second, the headlamp will automatically downshift the brightness level to Low output to avoid potential burns caused by high temperature(s). When the lamp head is moved away from the illuminated object for more than 1.2 seconds, the headlamp will automatically recall the previously used output level.
Charging:
1. Uncover the anti-dust cap on the battery case and plug the USB Type-C side of the cable into the port on the battery case. 2. When charging, the LED indicators will flash from left to right to display the charging status. The four indicators will be constant-on after charging is completed. 3. With the lamp switched off, the normal charging time is about 2 hours from depleted to fully charged. 4. Compatible fast-charging protocols: PD3.0/2.0; max charging power: 27 W.
Note: 1. The headlamp can be operated while charging. 2. Once charging is completed, be sure to unplug the cable and close the anti-dust cover.
Power Bank Function:
1. Uncover the anti-dust cap on the battery case and plug the USB Type-C side of the cable into the port on the battery case. 2. When discharging, the LED indicators will flash from right to left to display the discharging status. 3. The battery case will automatically stop discharging when the battery level is lower than 6.1 V. 4. Compatible fast-discharging protocols: PD3.0/PD2.0; max discharging power: 20 W.
Note: 1. The headlamp can be operated while discharging. 2. Once discharging is completed, be sure to unplug the cable and close the anti-dust cover.
Battery level indication:
With the lamp switched off, single click Switch B to check the battery status. Single click once again the indicator(s) will go out immediately, or without any operation the indicator(s) will last for 3 seconds.
Four lights on: 100% - 80% Three lights on: 80% - 60% Two lights on: 60% - 40% One light on: 40% - 20% One light flashes: 20% - 1%
Package & Contents
Retail Packaged Fenix HP35R headlamp Quick release 10,000 mAh battery pack with red safety light 2 in 1 USB-C charging cable Extension cable 2 x Cable clip User manual Warranty card
