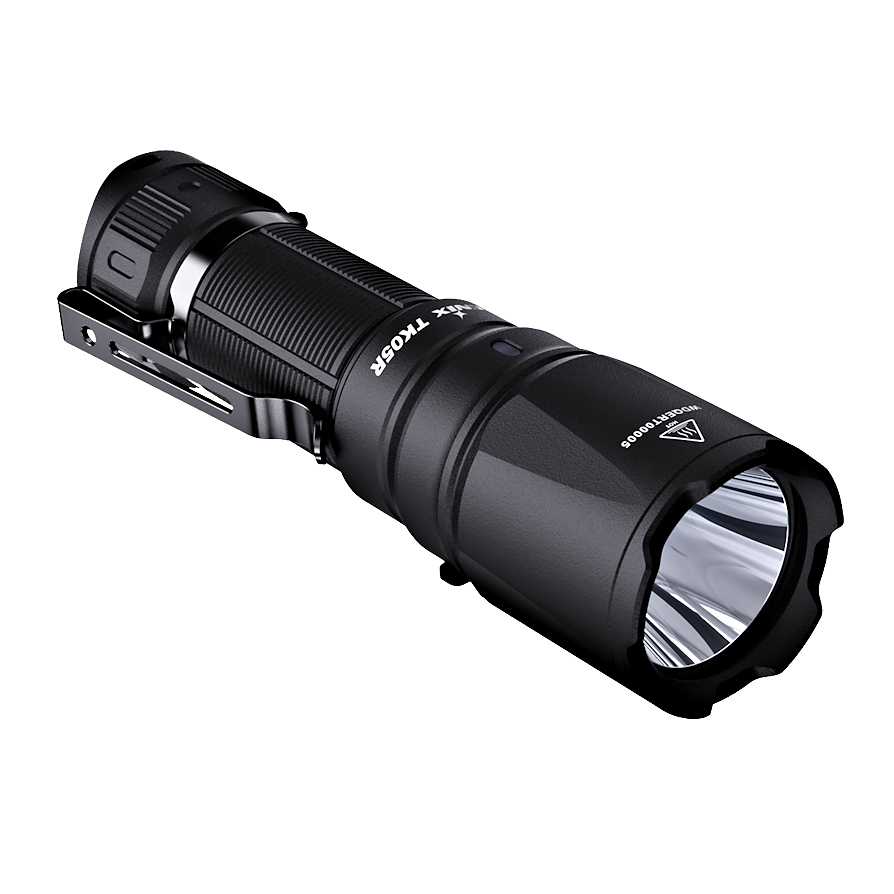

Fenix TK05R is an ultra compact tactical torch that is built for law enforcement and every day carry. Featuring dual tail switches, TK05R is simple to operate and features 3 versatile brightness settings of 30, 350 and 1000 lumens, with an impressive beam range of 450m. Instant-Strobe is available with the torch switched on or off.
An 1100mAh rechargeable lithium battery powers TK05R and this is easily swapped for a spare. Charging is via a USB-C socket in the neck of the light. Protected by a rubber cover, the charge port is also internally waterproofed for ultimate reliability.
The small form factor of TK05R is perfect for every day carry. The torch can also be weapon mounted, with contact springs at both ends of the battery compartment to protect the battery from recoil / impact and ensure an excellent electrical contact under all conditions.
The power switch incorporates constant-on and momentary-on capability whilst the mode switch gives rapid access to the 3 brightness levels, plus Instant Strobe.
• Only 115mm long
• Osram CSLPM1.TG LED
• Fenix ARB-L18-1100 high power 18350 battery
• Fenix APF electronic switch system for ultimate reliability
• Forward clicky tail switch with momentary and constant-on activation
• Tail mode switch for brightness control and Instant Strobe activation
• Mode switch cycles through Low-Mid-High outputs
• Last mode memory - remembers your brightness setting (except Strobe)
• Strobe can be instantly activated with the light switched on or off
• Charge level / battery level LED in neck of light
• Overheat protection at 55 degrees C (max power can be set once the light cools)
• Low battery voltage warning
• 1m drop tested
For full product details please refer to the user manual in the images area.
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Dual tail cap switches: (mode switch and on - off - momentary switch)
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish (aluminium surfaces)
Tail Stand
No
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
115mm (Length) x 32mm (Head Diameter) x 23.5mm (Body Diameter)
124 grams (including battery)
Further Info
N/A
Operation
Fenix TK05R operation:
TK05R switches:
Fenix TK05R features a dual-switch tail cap.
The larger tactical switch is for momentary and constant-on operation, while the function switch selects brightness level & strobe.
On/off:
Tap (half press) the tactical switch to momentarily turn on the light, release and the light will go out. Fully press the tactical switch (click) to turn on the light constantly. Fully press again (click) to turn off the flashlight.
Output Selection:
With the light switched on, single click the function switch to cycle through Low-Med-High.
Strobe: Â With the light switched off, press the functional switch to enter strobe, release and the light will go out. With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe , click the functional switch once again to return to the previously used output, or fully press the tactical switch to turn the flashlight off.
Package & Contents
Retail Packaged Fenix TK05R Fenix ARB-L18-1100 18350 Battery USB-C Charger Lead Lanyard Holster Spare O-ring User manual Warranty card
