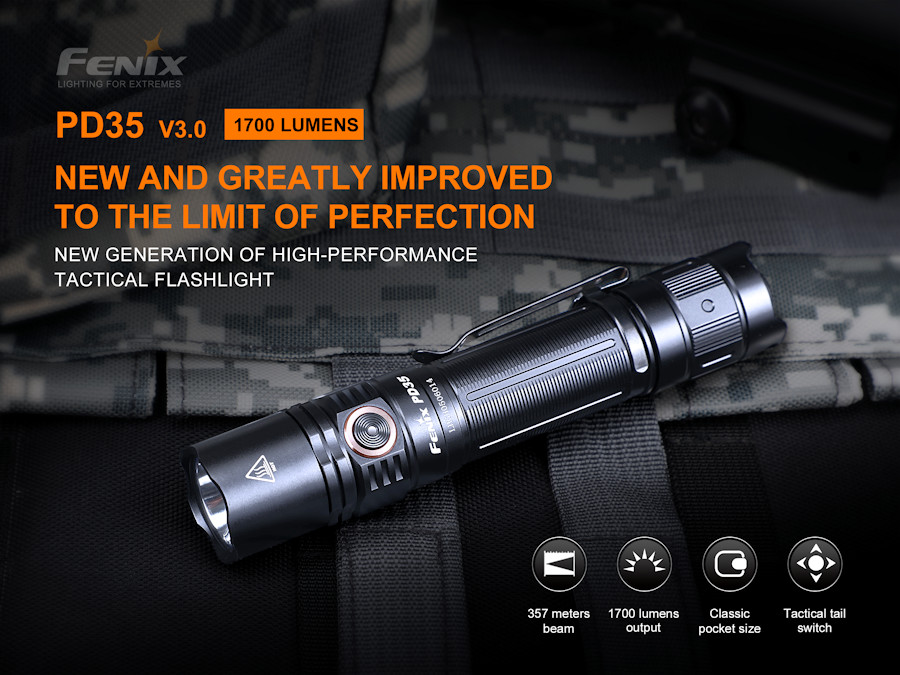

Fenix PD35 V3.0 is the latest, upgraded small light cannon in the classic and hugely popular PD35 line. With an impressive maximum output increased from 1000 to 1700 lumens over the previous model and incredible build quality, Fenix PD35 V3.0 LED torch offers tremendous lighting performance in a compact, lightweight body that's easy to carry every day.

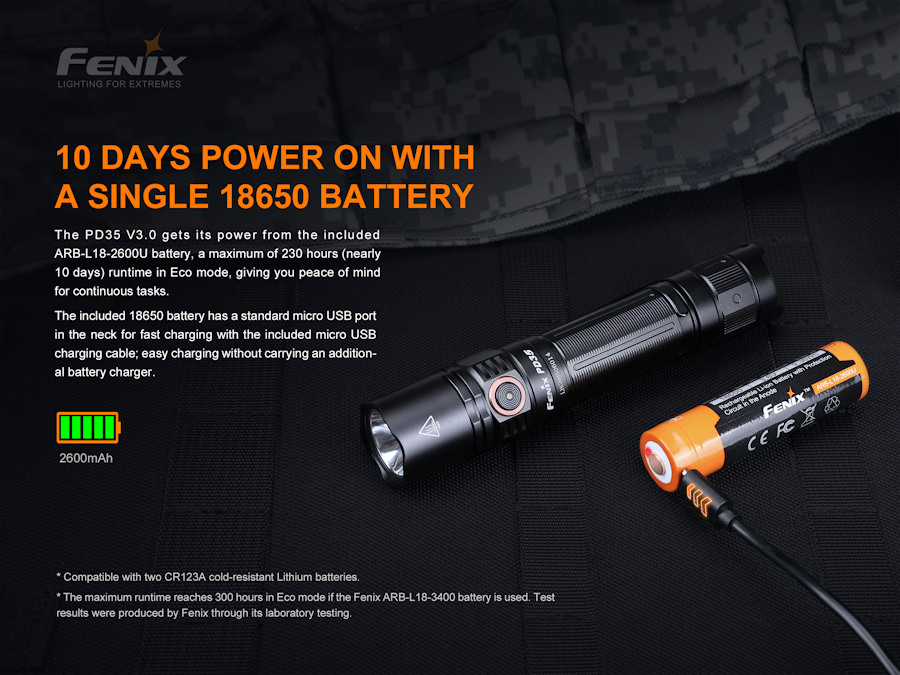

PD35 V3 also delivers an increased beam distance up from 250 to 357m, digitally regulated output that maintains constant brightness in all except Turbo mode, and the inclusion of a Fenix ARB-L18-2600U Micro USB rechargeable 18650 battery as standard.

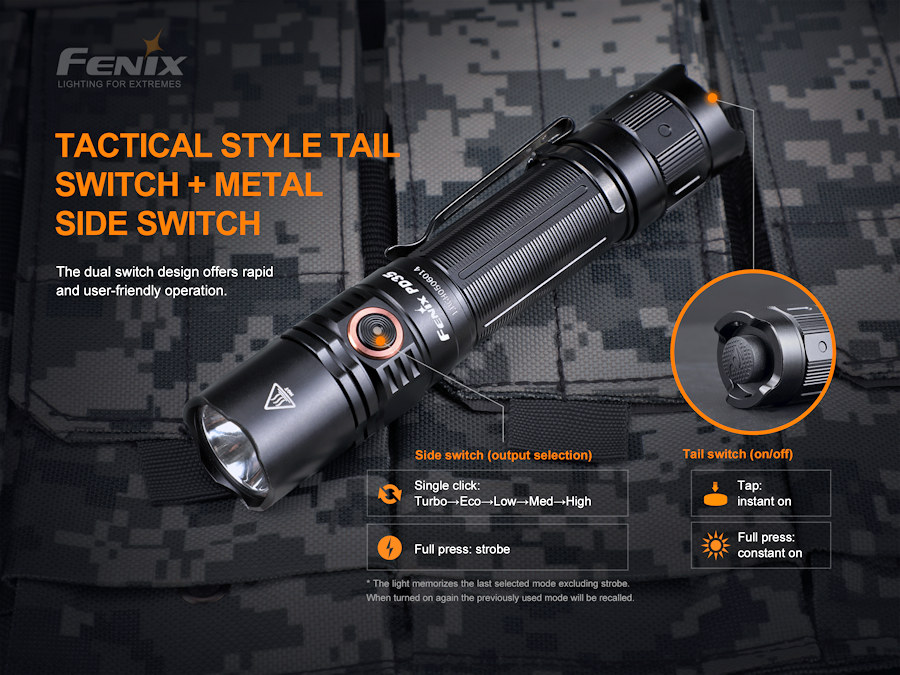

Dual switches offer ergonomic and convenient operation. The rear Tactical style tail switch enables the light to be operated momentarily with a half press or constantly when fully clicked on.
Tap the forward (neck mounted) mode switch to cycle through Turbo - Eco - Low - Medium and high modes, (mode memory maintains your setting next time the light is operated) Holding down the switch for 0.5 seconds gives direct access to disorienting strobe mode.

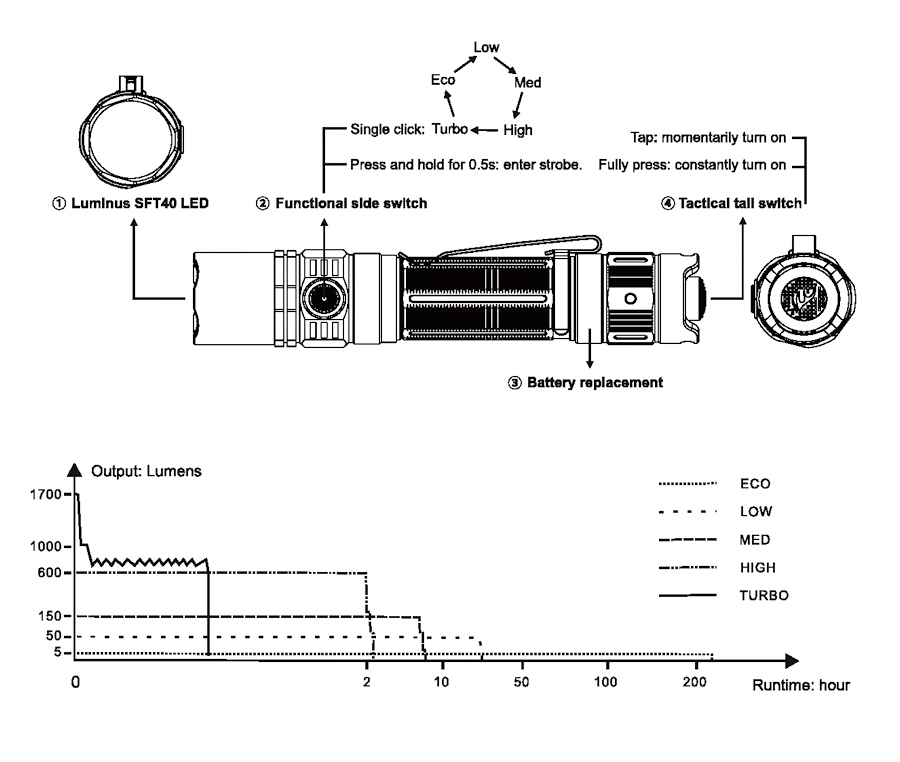

Fenix PD35 V3.0 torch performance:
Eco - 5 lumens (230 hrs non dimming output) - 20m beam
Low - 50 lumens (26 hrs 25 min non dimming output) - 63m beam
Med - 150 lumens (8.5 hrs non dimming output) - 109m beam
High - 600 lumens (2hrs 35 min non dimming output) - 216m beam
Turbo - 1700 lumens (heat protected - steady 750 lumens after step down - 1 hr 25 min) - 357m beam
Strobe - 1700 lumens
Fenix PD35 V3.0 features:
• Over heat protection
• Battery status indicator built into the mode button
• Compatible with CR123 non rechargeable batteries
• Low voltage warning flash
• 1.5m drop tested
• Titanium body clip
Compatible accessories:
AOD-S diffuser, AOT-S traffic wand, ALP-10S holster, AER-02 V2 weapon remote.
A great choice for self defence, patrol, industrial maintenance, outdoor activities and daily lighting.

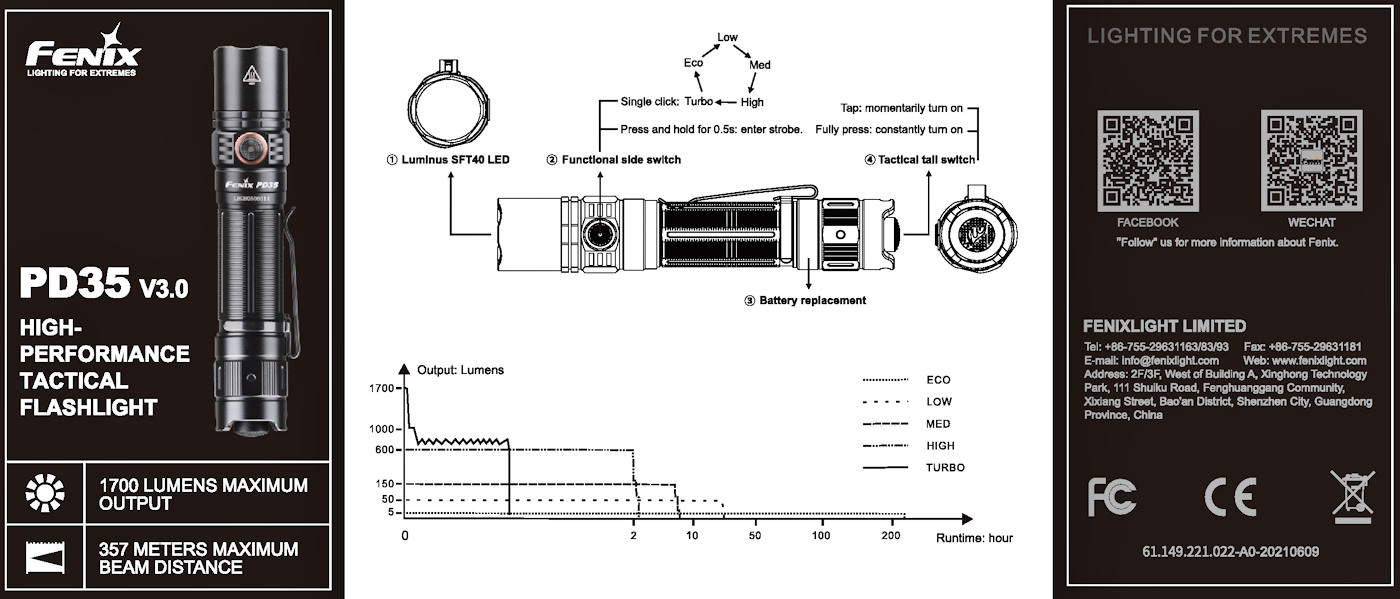

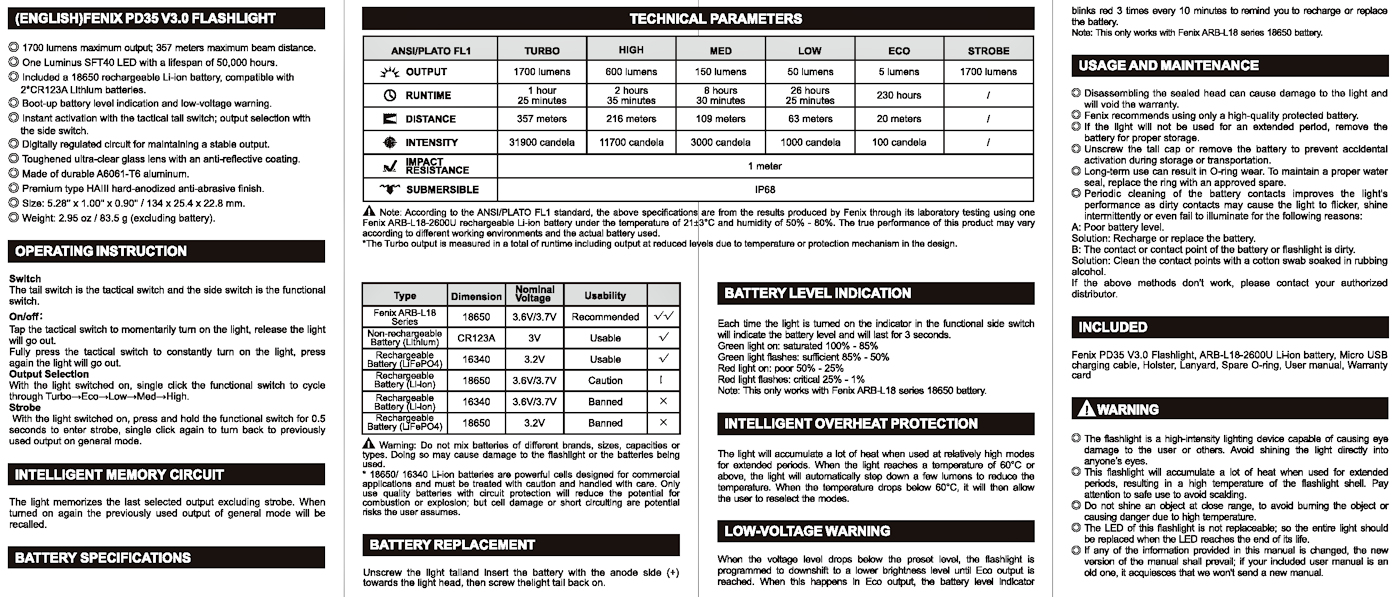

For full product details please refer to the user manual in the small images area above.
Specification
Model
PD35 V3.0
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 non-rechargeable, 2 x 16340 (LiFePO4) 3.2v (Do not use 3.7v 16340 / RCR123 or 3.2v LiFePO4 18650 in this product)
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Tail on - off - momentary, Side mode switch
Construction
Durable aircraft-grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
134mm (Length) x 25.4mm (Head Diameter) x 22.8mm (Body Diameter)
83.5 grams (excluding battery)
Further Info
N/A
Operation
Fenix PD35 V3.0 operation:
Switches:
The tail switch is the tactical on / off switch and the side switch is the function switch.
On/off:
Tap (half press) the tactical switch to momentarily turn on the light, release and the light will go out. Fully press the tactical switch (click) to turn on the light constantly, press again (click) and the light will go out.
Output Selection:
General mode:
With the light switched on, single click the functional switch to cycle through Turbo→Eco→Low→Med→High.
Strobe:
With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, single click the switch to turn back to previously used output on general mode.
Intelligent Memory Circuit:
The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
Package & Contents
Retail packaged Fenix PD35 V3.0 LED Torch Fenix ARB-L18-2600U Battery Micro USB Charger Lead Holster Lanyard Spare O-ring Warranty card User manual
