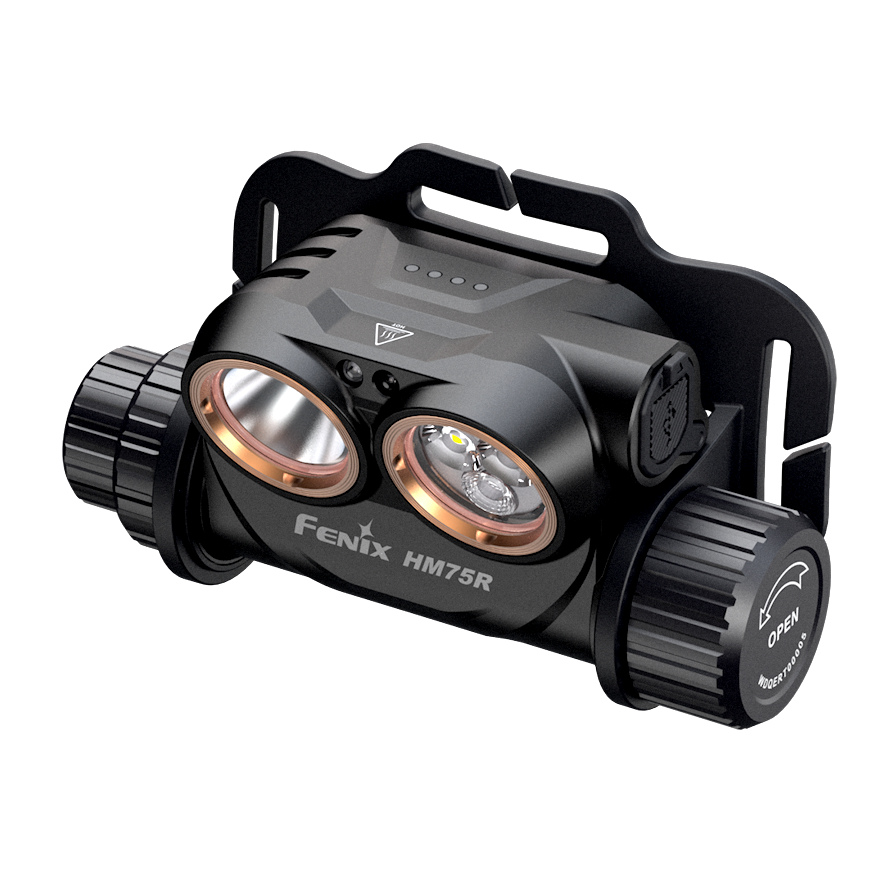

Fenix HM75R SE is a high quality Industrial head torch which features a powerful 1600 lumen main beam, 1000 lumen floodlight and 120 lumen red light in a compact magnesium alloy head unit, powered by a replaceable 3400 mAh, 18650 Li-ion battery, and charged via a USB-C port in the side of the head unit.
HM75R is simple to operate, with a metal rotary switch for mode selection, and a central push button for brightness adjustment.
The light features a proximity sensor to reduce output if it is placed very close to an object or accidentally switched on in a backpack etc.
Fenix HM75R SE headlamp performance:
ARB-L18-3400 internal battery:
• Light weight magnesium construction. Excellent heat sinking for extended service life and superior performance at high output
• Dual switch operation, 1 x rotary switch + 1 x push button
• Battery level / charging indicator – 4 level indicator giving a clear reading of battery status
• USB-C charging port with inner waterproofing. 4 hr charge time
• Can use 2 x CR123 non rechargeable batteries as a back up power source
• Built-in 50mm proximity distance sensor reduces output to prevent heat damage to headlamp and nearby objects (can be switched off)
• Breathable, detachable headband with reflective strips
• Tilt adjustable head for perfect beam alignment
• IP68 Rated - Dust and water proof. Submersible up to 2 metres for 4 hours
• 2m impact resistant
• Over temperature protection at 60c
For full product details please refer to the user manual in the images area.
Specification
Model
HM75R Standard Edition
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 (Do NOT attempt to charge CR123 batteries in this product)
LED Type
Luminus SST-40 cool white x 1, Luminus SST-20 neutral white x 2, Osram GRQSSPA1.23 red x 1
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Rotary mode switch with central push button brightness switch
Construction
Durable high strength / light weight magnesium alloy
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
91mm (Length) x 41mm (width) x 53.5mm (Height):
169 grams (including battery)
Further Info
N/A
Operation
Fenix HM75R SE headlamp operation:
On/off:
On: With the lamp switched off, turn the rotary switch clockwise to any designated mode to turn on the lamp. Off: With the lamp switched on, turn the rotary switch counterclockwise to the off position to turn off the lamp.
Mode switching:
Turn the rotary switch to cycle through OFF ⇄Spotlight⇄Floodlight⇄Red light.
Output selection:
Spotlight mode: With the lamp switched on, single click Switch A to cycle through Low→Med→High→Turbo. Floodlight mode: With the lamp switched on, single click Switch A to cycle through Low→Med→High→Turbo. Red light mode: With the lamp switched on, single click Switch A to cycle through Low→Med→High→Flash. Intelligent Memory Circuit:
The headlamp automatically memorizes the last selected output of each mode. When turned on again the previously used output of the last selected mode will be recalled.
*The lamp will enter High output if it was previously switched off in Turbo mode.
Intelligent Brightness Downshifting Function:
Turning on/off Intelligent Brightness Downshifting Function: On: With the light switched off, press and hold Switch A for 6 seconds, and the headlamp will flash twice at the Low output of Floodlight mode, indicating that the function is enabled. Off: With the light switched off, press and hold Switch A for 6 seconds, and the headlamp will flash eight times at the Low output of Floodlight mode, indicating that the function is disabled.
Intelligent Brightness Downshifting:
When the lamp head is close to an illuminated object (about 2.36''/60 mm) for more than 1.5 seconds, the headlamp will automatically downshift the brightness level to Low output to avoid potential burns caused by high temperature(s). When the lamp head is moved away from the illuminated object for more than 0.8 seconds, the headlamp will automatically recall the previously used output level.
Package & Contents
Retail packaged Fenix HM75R SE headlamp Fenix ARB-L18-3400 18650 battery USB-C type charge cable Spare O-ring Instruction manual Warranty card
