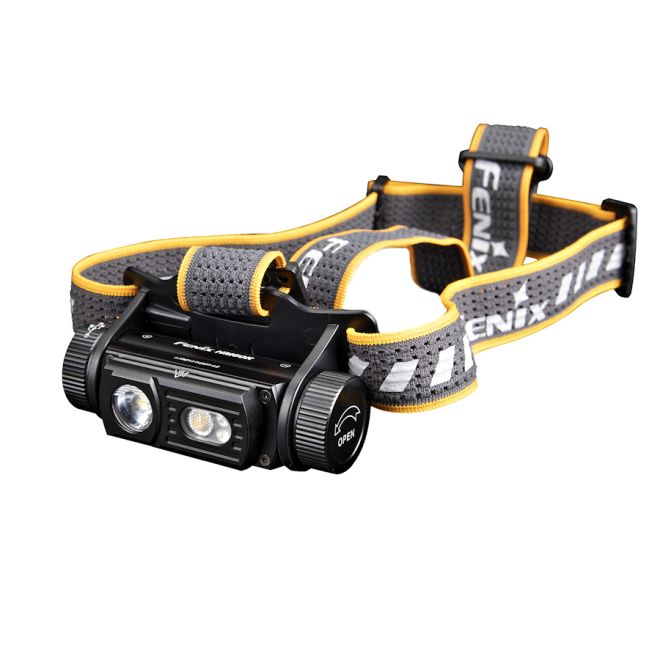

Fenix HM60R is a 1200 lumen lightweight rechargeable head torch designed for runners, but also suitable for general and industrial use. This versatile light incorporates a Dual Distance main beam, pure flood beam and red flood beam with SOS function into one compact unit. The light also features a stride sensor that works at Mid and High brightness levels, measuring your running pace, then automatically brightening or dimming the main beam.
The aluminium body is light weight and provides excellent heat dissipation. This feature, combined with the supplied 3400 mAh 18650 battery enables Fenix HM60R to run at higher output for longer than a similarly sized plastic headlamp whilst retaining excellent service life.
A modern USB-C type socket is fitted under an aluminium screw cover (charging cable supplied) to charge the included 18650 battery in just 3 hours using your mobile phone charger or similar. (1.5A current)
Main beam:
The main 1200 lumen beam with Dual Distance Lens features a balanced combination of spot light, near light and wide area spill light. Safe illumination for a multitude of tasks. The main light offers output levels from 30 to 1200 lumens and punches out to 116 meters at maximum output.
Low - 30 lumens (54 hours) - 18m beam
Med - 130 lumens (18 hours) - 36m beam - Stride sensing variable output
High - 350 lumens (8 hours) - 60m beam - Stride sensing variable output
Turbo - 1200 lumens (2 hours total run time) - 116m beam (over heat protected - output will reduce to protect the LED and circuitry at 55c. Max power can be re set once the headlamp cools)
Pure flood beam with no distracting hard edges:
The HM60R's pure flood beam offers 2 output levels of 70 and 350 lumens. From a low level close working beam to a smooth, powerful pure flood with no hot spot, the flood light has you covered. Run times vary from a powerful 8 hours working light, to an impressive 24 hours at 70 lumens!
Med - 70 lumens (24 hours) - 15m beam
High - 350 lumens (8 hours) - 33m beam
Red beam:
Protect your night vision or set up an emergency signal with the low level red beam.
Red - 5 lumens (100 hours) - 5m beam
Red SOS - 5 lumens (200 hours - 8.3 days) - 5m beam
*** Please note that beams cannot be operated together ***
Fenix HM60R headlamp features:
• Main beam - 5700K colour temp. Flood beam - 4500k colour temp
• Dual distance main beam puts light where you need it. Near and far.
• Mode memory - remembers last used lighting level
• LED battery level / charging indicator behind silicon button cover
• Can use 2 x CR123 battery
• Inner waterproof charging socket
• Perforated, breathable comfort headband
• Reflective strips on headband for added visibility
• 2m impact tested for durability
• 180 degree tilt mechanism for ideal beam alignment
• Beam lock out to prevent accidental activation during transport
• IP68 water proof (2m) for the toughest conditions
• Wide operating temperature of -35 to + 45 Deg C
• Fits Fenix ALG-03 V2 helmet mount for hard hats and caving helmets
This headlamp offers all the hallmarks of premium Fenix build quality with no corners cut, including metal heat dissipating head (much more expensive to produce than plastic headlamp bodies) and best electronics and LED's available.
For full product details please refer to the user manual in the small images area above.

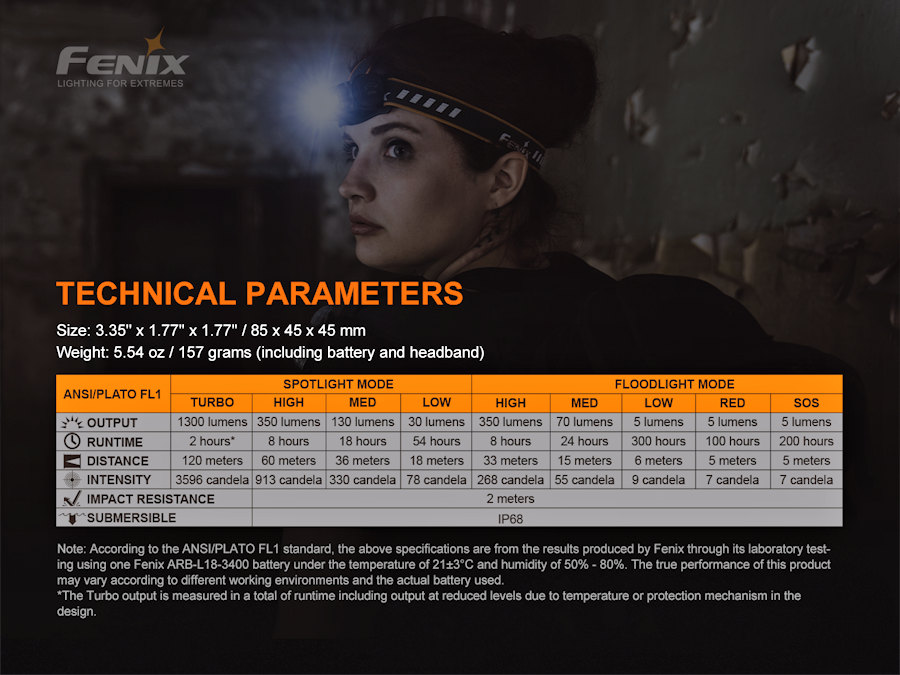

Specification
Model
HM60R
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 non-rechargeable, 2 x 16340 (LiFePO4) 3.2v (Do not use 3.7v 16340 / RCR123 or 3.2v LiFePO4 18650 in this product)
LED Type
Luminus SST40, Cree XP-G2 Neutral White and Everlight 2835 red light LEDs.
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
85mm (Length) x 45mm (Width) x 45mm (backplate height)
157 grams (incl battery & headband)
Further Info
N/A
Operation
Fenix HM60R operation:
On / Off:
Press and hold the switch for 0.5 seconds to turn the lamp on / off
Mode Switching:
With the lamp switched off, press and hold the switch for 0.5 seconds to enter General Mode (Main Beam) or double click the switch to enter Functional Mode (Flood and Red LED's).
With the lamp switched on, hold down the switch for 1.2 seconds to switch between modes.
Output Selection:
In General Mode: Single click the switch to cycle through Low - Med - High and Turbo modes. In Functional Mode: Single click the switch to cycle through Red - Medium Flood - High Flood and Red SOS.
Lockout Mode:
Lock: When the lamp is switched off, press and hold the switch for 3 seconds. The lamp will blink red 4 times to indicate locked status. Unlock: When the lamp is locked, press and hold the switch for 3 seconds. The lamp will blink red 4 times then enter red light mode.
Status: If the lamp is locked, it will blink red 4 times after pressing the switch to indicate locked status.
Package & Contents
Retail Packaged Fenix HM60R Headlamp Fenix ARB-L18-3400 Li-ion battery USB Type-C charging cable Spare O-ring User manual Warranty card
