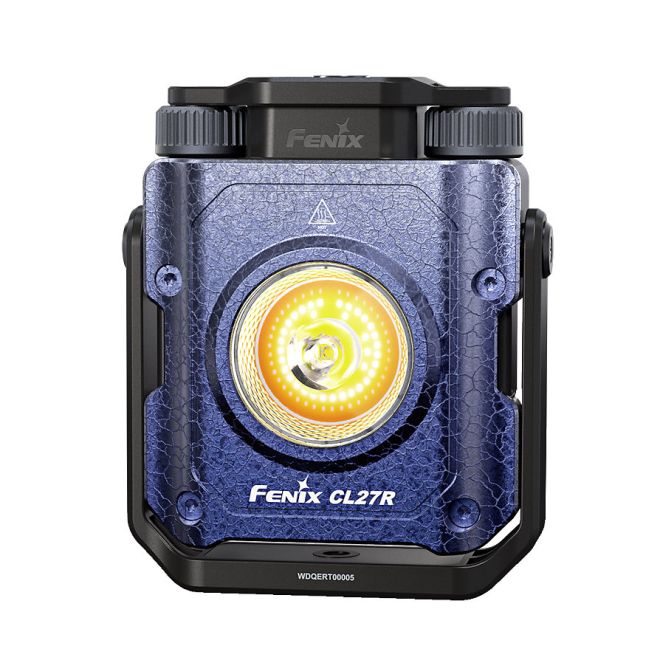

Fenix CL27R is a superb rechargeable lantern that integrates both long range spotlight and wide area floodlight beams into its central LED unit for total versatility in use, both as a lantern and for longer distance illumination out to 180 metres. Beams can be combined to deliver a maximum output of 1600 lumens.
The lamp features stepless brightness control and stepless flood light colour regulation, from 2700-6500k via rotary switches. A central mode button selects spotlight, floodlight, spot and floodlight and red light mode.
CL27R is compact, built from lightweight aluminium / quality plastics, and features a removable 21700 Li-ion cell that can be easily swapped for a spare. An 18650 battery can also be used in combination with the Fenix ALF-18 battery holder (sold separately).
The built-in magnetic handle featuring 360 degree rotation and a tripod thread offers multiple mounting options, including free standing, magnetically attached and tripod mounted use, making this light ideal for Industrial maintenance, vehicle maintenance, camping, fishing, photography and power cuts etc. A huge 285 hrs run time at the low 5 lumen setting also equips CL27R perfectly for emergency situations.
• Premium anodized aluminium and quality plastic construction
• Triple beam system. Spotlight / floodlight / red light
• Stepless light output adjustment (except red)
• Wide range colour temperature adjustment from warm to cool light (2700 to 6500k)
• 14.5 degree spot beam / 85 degree flood beam angle
• 10 lumen red light
• 5,000 mAh large capacity battery
• USB-C charging in just 2.5 hrs
• 4 LED charge level / battery meter
• Magnetic 360 degree swivel handle with tripod socket for convenient mounting
• IP66 rating, protected against heavy rain and splashes
• 1.5m drop tested for durability
• 50,000 hours LED life
For full product details please refer to the user manual in the images area.
Specification
Model
CL27R Blue Embossed
Battery Type
21700
Battery Quantity
1
Additional Battery Type
Can use an 18650 Li-ion battery in conjunction with the Fenix ALF-18 battery holder (sold separately)
LED Type
1 x Tricolour COB and 1 x Luminus SST20 LED
Output/Runtime
Please refer to product description
Flashing Modes
Red Flash
Max Beam Distance
180m
Reflector
TIR lens with ring reflector
Lens Type
TIR Lens
Switch Type
Dual rotary switches for light output and colour temperature. Push button switch for red light
Construction
Durable aircraft-grade aluminum and quality plastics
Tail Stand
Yes
Pocket Clip
No
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
109.8mm (height) x 91.7mm (width) x 39.6mm (Depth)
300 grams (including battery)
Further Info
N/A
Operation
Fenix CL27R lantern operation:
The top Rotary Switch A is for brightness adjustment and the Rotary Switch B is for colour temperature selection. The top electronic push button switch is for mode switching and output selection of red light mode.
On/off:
On: with the lantern switched off, rotate the Switch A clockwise or long press the top electronic switch to turn on the lantern. Off: with the lantern switched on, rotate the Switch A counter clockwise to the OFF state or long press the top electronic switch to turn off the lantern.
Mode Switching:
The lantern has four modes: Floodlight mode, Spotlight mode, Spot-and-floodlight mode, and Red light mode.
1. With the lantern switched off, rotate the Switch A clockwise to turn on the lantern and enter the Floodlight mode, single click the top electronic switch to cycle through Floodlight mode→Spotlight mode→Spot-and-floodlight mode.
2. With the lantern switched off, press and hold the top electronic switch for 0.5 seconds to turn on the lantern and enter the Red light mode. Note: the Red light mode cannot be operated with other modes simultaneously.
Output Selection:
1. In Floodlight mode, Spotlight mode or Spot-and-floodlight mode:
Rotate the Switch A clockwise to change the brightness from low to high, and rotate counterclockwise to change the brightness from high to low. Rotate the Switch B clockwise to change the color temperature from warm to cold, and rotate counterclockwise to change the color temperature from cold to warm.
Note: The color temperature of Spotlight is 5700K. Only the color temperature of the Floodlight is adjustable, with a range from 2700K to 6500K.
2. In Red light mode:
Single click the top electronic switch to select between Red constant-on and Red flashing.
Intelligent Memory Circuit:
The lantern memorizes the last selected color temperature of Floodlight. When turned on again the previously selected color temperature will be recalled.
Note:
1. The lantern doesn’t memorize the last selected lighting mode and brightness level. When turned on again, the Low output of Floodlight mode will be recalled. 2. If Switch B is rotated after turning off the lantern, the previously selected color temperature won’t be recalled when turned on again.
Battery Replacement:
Use the included battery cover key to snap in the groove of the battery cover, and rotate counter clockwise to unscrew the battery cover. Insert the battery with the anode side (+) towards the inner side, then screw the battery cover back on.
*Unscrewing the battery cover with a sharp tool can cause damage to the battery cover.
Charging:
1. Open the anti-dust cover to reveal the USB Type-C charging port and connect the USB Type-C socket of the charging cable to the lantern. 2. When charging, the charging indicators will flash from left to right to display the charging status. 3. The four indicators will be constant-on after charging is completed.
Note:
1. The lantern can be operated while charging. 2. Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability. 3. The normal charging time of the lantern is approximately 2.5 hours from depleted to fully charged.
Battery Level Indication:
Each time the light is turned on, the indicator(s) will show the battery level and will last for 3 seconds. With the lamp switched off, single click the top electronic switch to check the battery level and the indicator(s) will light for 3 seconds.
Four lights on: 100% - 80% Three lights on: 80% - 60% Two lights on: 60% - 40% One light on: 40% - 20% One light flashes: 20% - 1%
*Note: This feature only works with a Fenix ARB-L21 battery.
Low-voltage Warning:
When the voltage level drops below the preset level, one of the battery level indicators constantly blinks to remind you to recharge the battery. To ensure normal use, the lantern will not turn off automatically and will work till the battery level runs out.
Package & Contents
Retail Packaged Fenix CL27R Blue Embossed Edition Lantern Fenix ARB-L21-5000 V2 21700 battery Battery cover key USB-C charging lead Spare O-ring Warranty card User manual
