Fenix ARE-X1 V2.0 Charger / Portable Power Bank
£14.95
In Stock
For commercial orders and large purchases, contact us at 02921157162, or
Product Description
Specification
Package & Contents
Product Description
Fenix ARE-X1 V2.0 single bay smart battery charger offers a high quality, safe and convenient way to charge one 18650, 21700 or 26650 Li-ion battery from your existing mains USB charger (mobile phone charger etc) using the supplied USB-C lead. ARE-X1 v2.0 can also act as a portable power bank with its USB-out socket providing extra power on the go from a charged Li-ion battery.
Battery for illustrative purposes - not included
ARE-X1 v2.0 offers over voltage, over current, short circuit, reverse polarity and over charging protection.

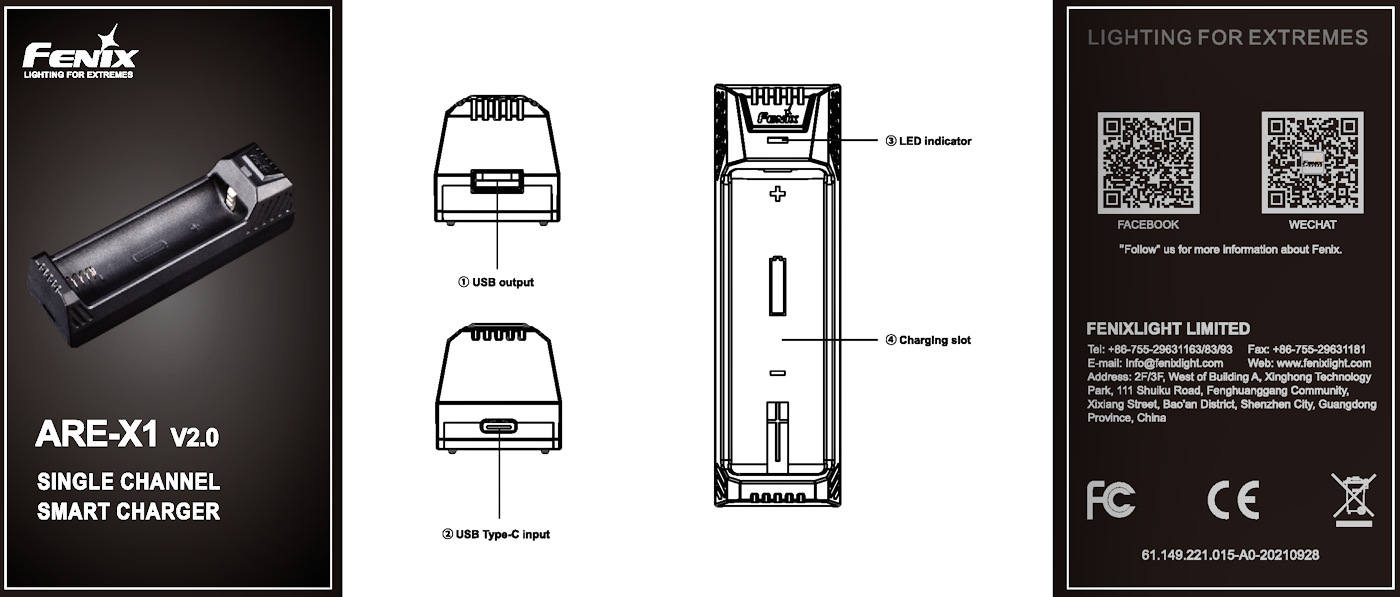

An LED indicator displays charge and discharge status.
Insert battery - power level detection:
Green LED: Sufficient power for charging your external device
Red LED: Critical power level
The light will go out after 3 seconds
Charging inserted 18650, 21700 or 26650 battery:
Red LED: Charging
Green LED: Fully charged
Charging external device:
LED blinks red: Charging
LED goes out: Product fully charged
Fenix ARE-X1 V2.0 specifications:
Input: DC 5V, Maximum 1.5A
Output: DC 4.2V, 1.5A
Size: 109mm x 33.5mm x 32.5mm (length x width x height)
Weight: 48g (excluding battery)
Operating Temperature: -20℃ to 50℃ (Full-load in normal working condition)
Operating Humidity：5% (0℃) to 90%(40℃) 72 hours (Full-load in normal working condition)
Storage conditions: Temperature -20℃ to 85℃
Product ratings: CE, FCC, WEEE
Battery for illustrative purposes - not included
ARE-X1 v2.0 offers over voltage, over current, short circuit, reverse polarity and over charging protection.
An LED indicator displays charge and discharge status.
Insert battery - power level detection:
Green LED: Sufficient power for charging your external device
Red LED: Critical power level
The light will go out after 3 seconds
Charging inserted 18650, 21700 or 26650 battery:
Red LED: Charging
Green LED: Fully charged
Charging external device:
LED blinks red: Charging
LED goes out: Product fully charged
Fenix ARE-X1 V2.0 specifications:
Input: DC 5V, Maximum 1.5A
Output: DC 4.2V, 1.5A
Size: 109mm x 33.5mm x 32.5mm (length x width x height)
Weight: 48g (excluding battery)
Operating Temperature: -20℃ to 50℃ (Full-load in normal working condition)
Operating Humidity：5% (0℃) to 90%(40℃) 72 hours (Full-load in normal working condition)
Storage conditions: Temperature -20℃ to 85℃
Product ratings: CE, FCC, WEEE
Specification
| Charger Type | Li-ion |
|---|---|
| Cell Type | 18650 / 21700 / 26650 lithium battery |
| Battery Quantity | 1 |
| LED Indicator | Indicator LED - red = charging - green = charged |
| Caution | For further information and safety precautions for Li-ion battereries please visit http://batteryuniversity.com/learn/ |
| Further Info | Li-ion batteries should never be left charging unattended under any circumstances. The user must have knowledge of how to charge and discharge Li-ion batteries before using them. Always use a charger that is designed to recharge the particular Li-ion cell that you wish to recharge. Never use a DC adapter to charge Li-ion batteries. We are NOT responsible for any damage that is caused by the misuse of Li-ion batteries. We recommend charging any Li-ion cell on a metal or other non-flammable surface. |
Package & Contents
Retail packaged Fenix ARE-X1 v2.0 charger
USB charging lead
Instructions
