Product Description
WF30RE is an intrinsically safe Fenix torch designed for use in potentially hazardous and explosive atmospheres and suitable for most areas at risk of explosion (excluding underground mines).
Built with the usual premium Fenix quality, the high-strength A6061-T6 aluminium body is IP68 rated for 2m submersion (up to 30 minutes) and has been drop tested up to 1.5 meters.WF30RE uses the included Fenix ARB-L21-2600Ex rechargeable Li-ion battery which has passed temperature and explosion-proof tests and is designed to safely and reliably withstand extreme conditions. The battery enables the torch to operate in temperatures between -35°c to + 45°c.
Fenix WF30RE performance:
Low: 30 lumens (120 hrs), 58m beamMed: 120 lumens (15 hrs 40 min), 120m beam
High: 280 lumens (6 hrs 50 min), 170m beam
Strobe: 280 lumens

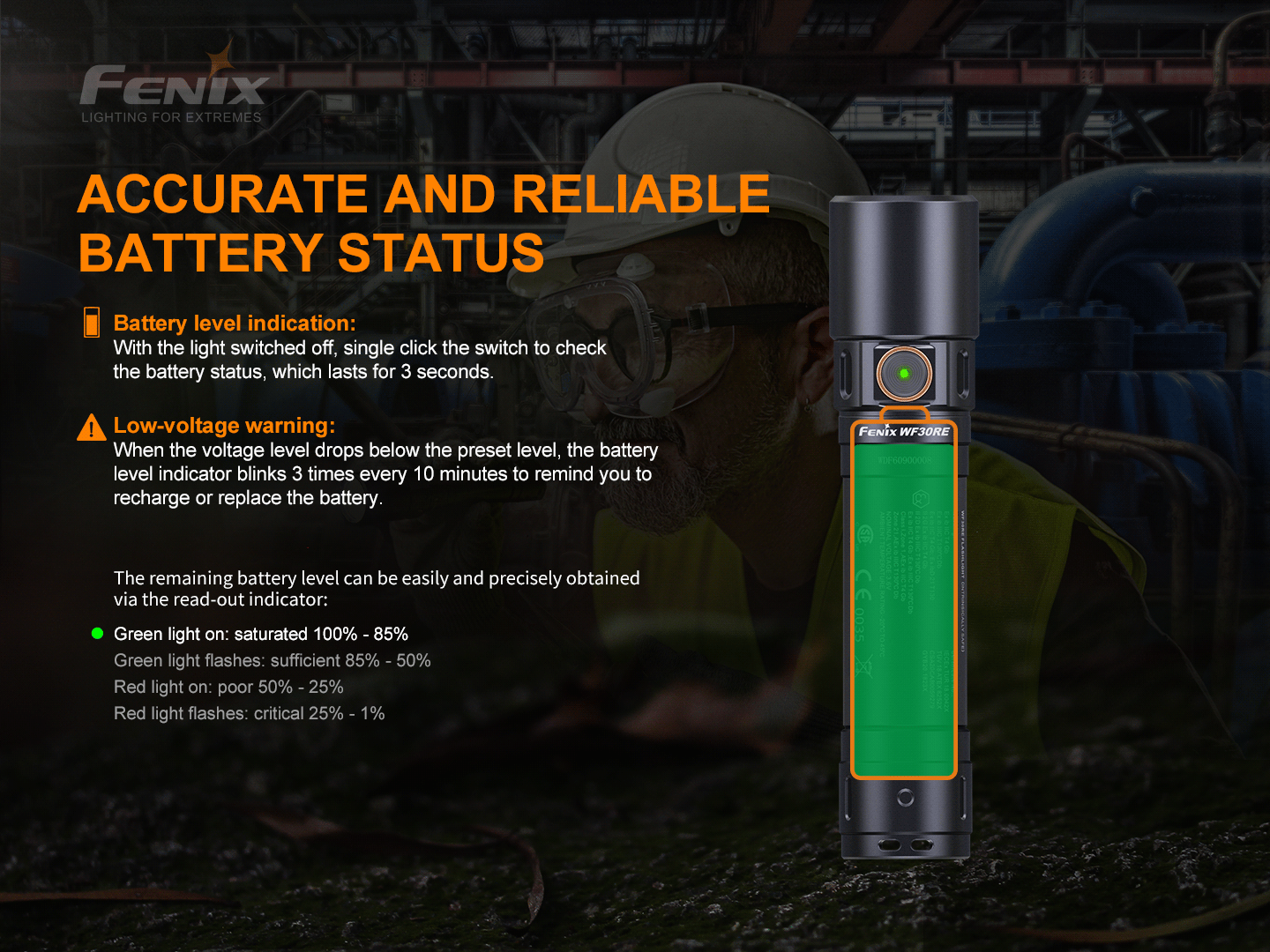

Battery Indication LED provides accurate and reliable readings
• Solid green light: 100% - 85%
• Blinking green light: 85% - 50%
• Solid red light: 50% - 25%
• Blinking red light: 25% - 1%
Certified:
Zones 1, 2 – potentially explosive gas
Zones 21, 22 – dust atmospheres
Fenix WF30RE features:
• Single button operation:
• Memory mode remembers your last used brightness level (except Strobe)
• Specialised charging protector preserves the intrinsically safe circuit (included)
For full product details please refer to the user manual in the images area.
Specification
| Model | WF30RE |
|---|---|
| Battery Type | Fenix ARB-L21-2600ex Explosion Resistant battery |
| Battery Quantity | 1 |
| Additional Battery Type | To maintain ATEX rating do NOT use any battery other than the model supplied |
| LED Type | Cree XP-G2 LED |
| Output/Runtime | High: 280 Lumens (6 hrs 50 mins), Med: 120 Lumens (15 hrs 40 mins), Low: 30 Lumens (120 hrs), Strobe: 280 Lumens |
| Flashing Modes | Strobe |
| Max Beam Distance | 170m |
| Reflector | Orange Peel reflector |
| Lens Type | Optimal quality optical lens |
| Switch Type | Side on-off-mode switch |
| Construction | A6061-T6 aircraft grade aluminum |
| Finish | Premium Type III hard-anodized anti-abrasive finish |
| Tail Stand | Yes |
| Pocket Clip | No |
| Waterproofing | IP68, 2m depth & dustproof |
| Dimensions/Weight | 150.5mm (Length) x 34mm (Head Diameter) x 28mm (Body Diameter) 215 grams (including battery) |
| Further Info | N/A |
Opearation
Fenix WF30RE operation:
On/Off:
Press and hold the switch for 0.5 seconds to turn on /off the light.
Output Selection:
With the light turned on, single click the switch to cycle through Low→Med→High.
Strobe:
When the light is switched on, press and hold the switch for 1.2 seconds to enter strobe. Single
click the switch to turn back to the previously used output.
Intelligent Memory Circuit:
The light memorizes the last selected output excluding strobe. When turned on again the
previously used output will be recalled.
On/Off:
Press and hold the switch for 0.5 seconds to turn on /off the light.
Output Selection:
With the light turned on, single click the switch to cycle through Low→Med→High.
Strobe:
When the light is switched on, press and hold the switch for 1.2 seconds to enter strobe. Single
click the switch to turn back to the previously used output.
Intelligent Memory Circuit:
The light memorizes the last selected output excluding strobe. When turned on again the
previously used output will be recalled.
Package & Contents
Retail Packaged Fenix WF30RE ATEX Intrinsically Safe Torch
Fenix ARB-L21-2600ex Explosion Resistant Battery
UK mains charging adaptor
Fenix specialised charging protector
Spare O-Ring
Lanyard
Declaration of Conformity
User Manual
Warranty Card
